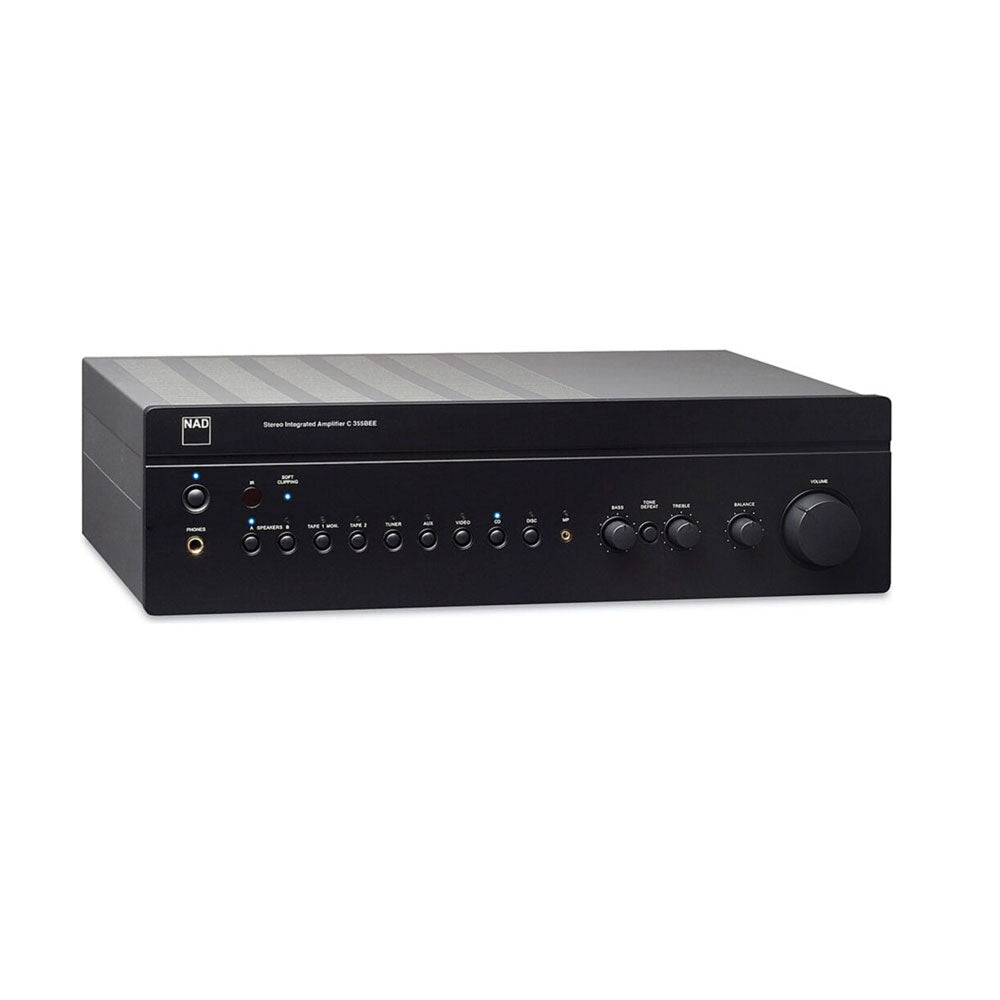

NAD C 355BEE Stereo integrated amplifier

NAD C 355BEE Stereo integrated amplifier

This integrated amp offers enough inputs to connect seven audio components. Two sets of main speaker outputs provide hookups for an additional pair of speakers. Separate preamp input/line-level output jacks let you use the C 355BEE as an independent power amplifier or preamp for future system expansion, or to easily add a powered subwoofer. And the included remote gives you easy control of the amplifier and the other NAD audio components in your system.

PREAMPLIFIER SECTION

LINE LEVEL INPUTS (DISC, CD, VIDEO, AUX, TUNER, TAPE MONITOR, TAPE2)

Input impedance (R and C) 200k KΩ+ 100pF

Input sensitivity (ref. rated power) 300mV

Maximum input signal 6V

Signal / Noise ratio A-weighted 1 98.0dB ref. 1W

Signal / noise ratio pre-amp out, A-weighted 110dB ref. 500mV

Frequency response 20Hz - 20kHz <±0.1dB (Tone defeat on)

<±0.1dB (Tone defeat off )

THD + Noise, SMPTE IM < 0.01% at 5V out

LINE LEVEL OUTPUTS

Output impedance - Pre-out 80 Ω

Tape Source Z + 1kΩ

Maximum output level - Pre-out >11V

Tape >10V

TONE CONTROLS

Treble ±5dB at 10kHz

Bass ±8dB at 100Hz

TRIGGER OUT

Output resistance <120 Ω

Output current 50mA

Output voltage 12V

POWER AMPLIFER SECTION

Continuous output power into 8 Ω 2 80W (19dBW)

Rated distortion (THD 20Hz - 20kHz) 0.02%

Clipping power (maximum continuous power per channel 4 Ω and 8 Ω) 92W

IHF Dynamic headroom - 8 Ω +2.4dB

4 Ω +4.4dB

IHF dynamic power (maximum short term power per channel) - 8 Ω 140W (21.5dBW)

4 Ω 220W (23.4dBW)

2 Ω 270W (24.3dBW)

Damping factor (ref. 8 Ω, 1kHz) >160

Input impedance (R & C) 20kΩ+ 1nF

Input sensitivity (rated output into 8 Ω) 940mV

Voltage gain 29dB

Frequency response 20Hz - 20kHz ±0.1dB

Signal/noise ratio, A-weighted 105dB (ref. 1W )

124dB (ref. rated power)

THD + Noise 3 <0.02%

SMPTE IM 4 <0.01%

IHF IM 5 <0.01%

Headphone output impedance 68 Ω

PHYSICAL SPECIFICATIONS

Dimensions (W x H x D) - Net 435 x 116 x 292mm

Gross 6 435 x 130 x 338mm

Net weight 8.5kg

Shipping weight 10.4kg
